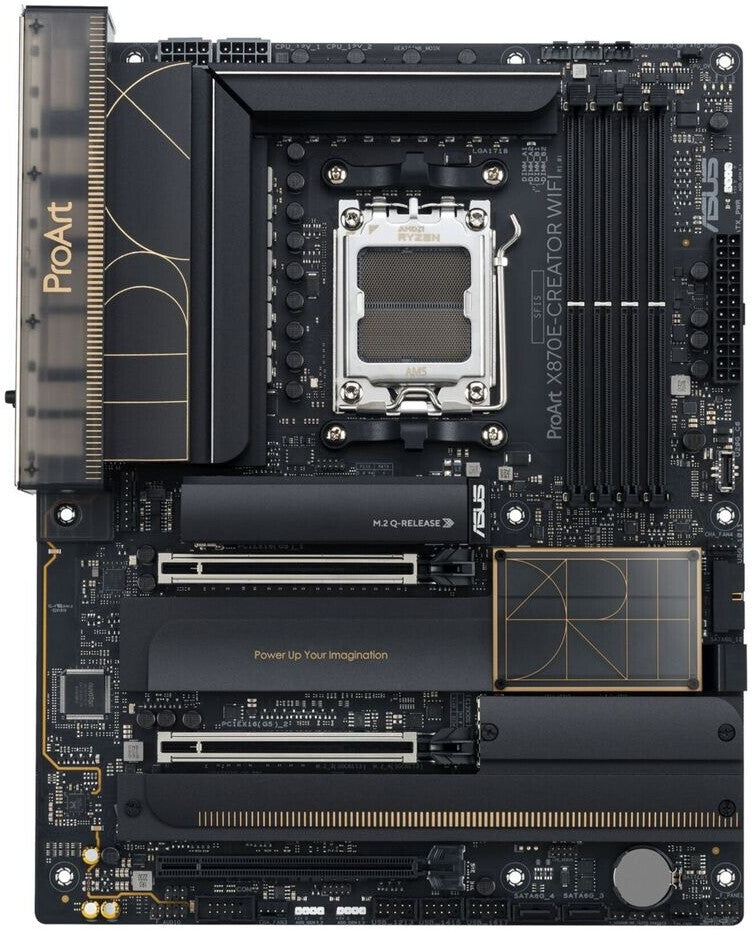

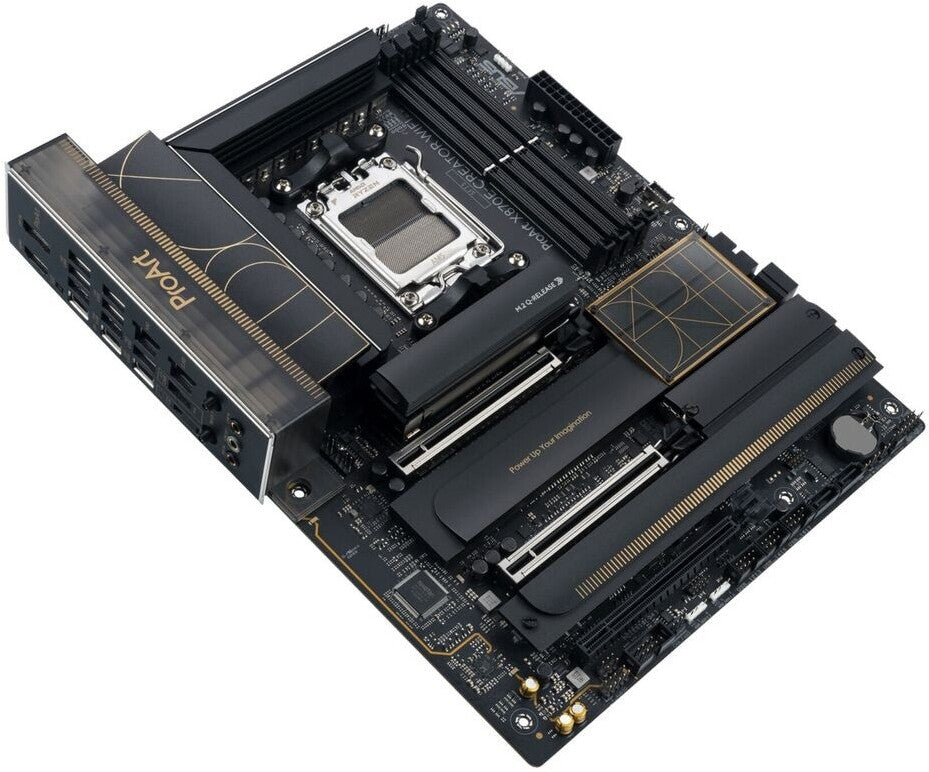

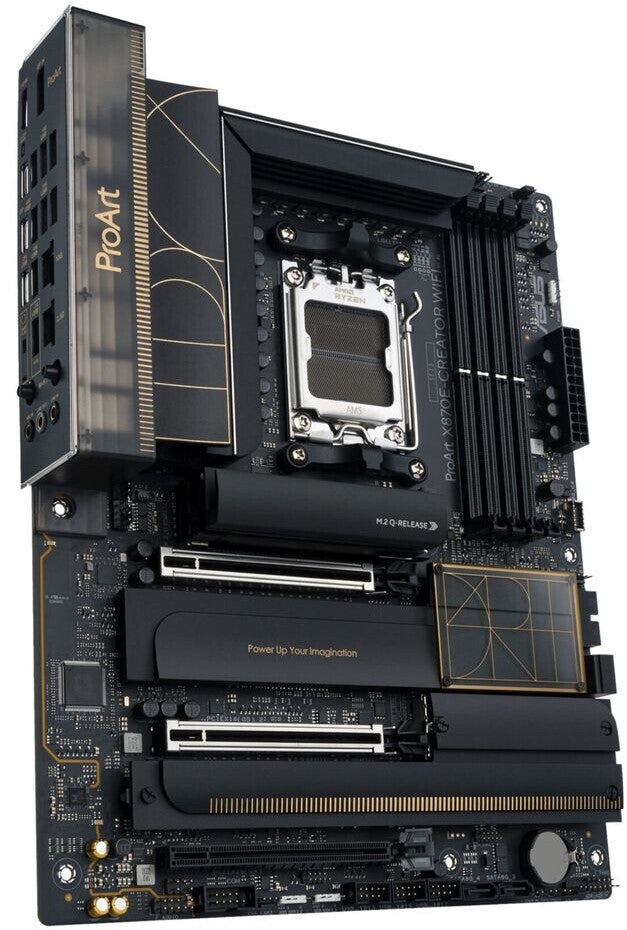

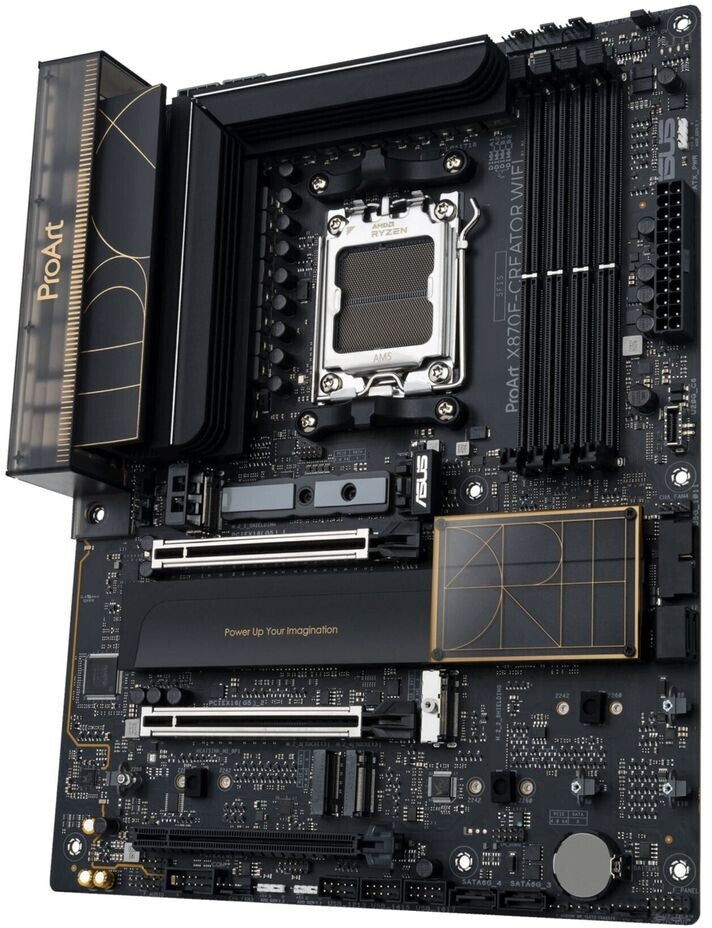

Key points

• Format: ATX

• Chipset: AMD X870E

• Socket: AM5

• Memory: 4× DDR5, dual-channel, up to 128/192 GB (EXPO/XMP profiles)

Expansion slots

• 1× PCIe x16 (CPU): PCIe 5.0 x16

• 1× PCIe x16 (second slot, typically PCIe 4.0 x4/x8 depending on wiring)

• 1× PCIe x1 (depending on revision)

Storage

• 4× M.2 NVMe: at least 1× PCIe 5.0 x4 + PCIe 4.0 x4 for the others (heatsinks)

• 4× SATA 6 Gb/s

Network & wireless

• LAN: 10 GbE + 2.5 GbE

• Wi-Fi: Wi-Fi 7 (802.11be)

• Bluetooth: 5.x

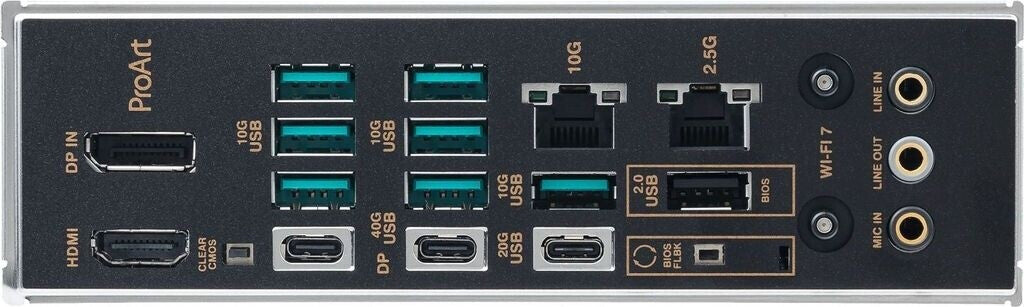

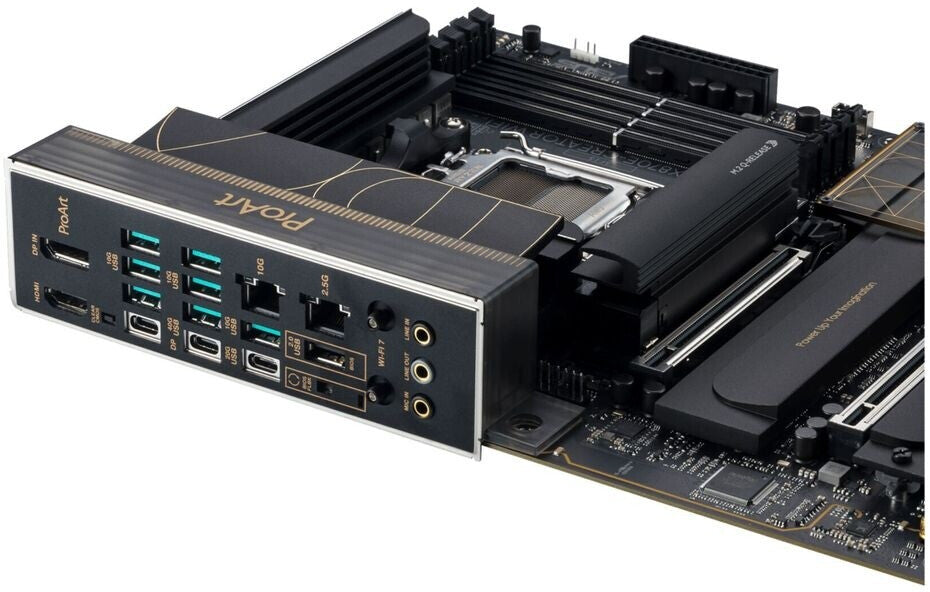

Rear connectivity (typical I/O)

• USB: extensive USB-C/USB4 ports, USB 3.2 Gen2/Gen1 ports, + USB 2.0

• Video: HDMI + DisplayPort (useful with APU / iGPU)

• Network: 1× RJ-45 10G + 1× RJ-45 2.5G

• Audio: analog jacks (for "creation")

Internal headers

• Front USB: USB-C headers (often Gen2x2) + USB 3.2 Gen1 header + USB 2.0 headers

• Fans: CPU_FAN, AIO_PUMP, multiple SYS_FANs (PWM/DC)

• RGB: ARGB 5 V headers + RGB 12 V (depending on version)

• Others: front audio, F-Panel, TPM (SPI)

Power supply

• 24-pin ATX + 8-pin CPU + 8-pin CPU
